Desktop impulse welding machine in premium quality. A reliable welding machine with a great price-quality ratio. Value for money. Weld length from 220 mm to 820 mm. Safe sealing of foils up to a total thickness of 200 microns.

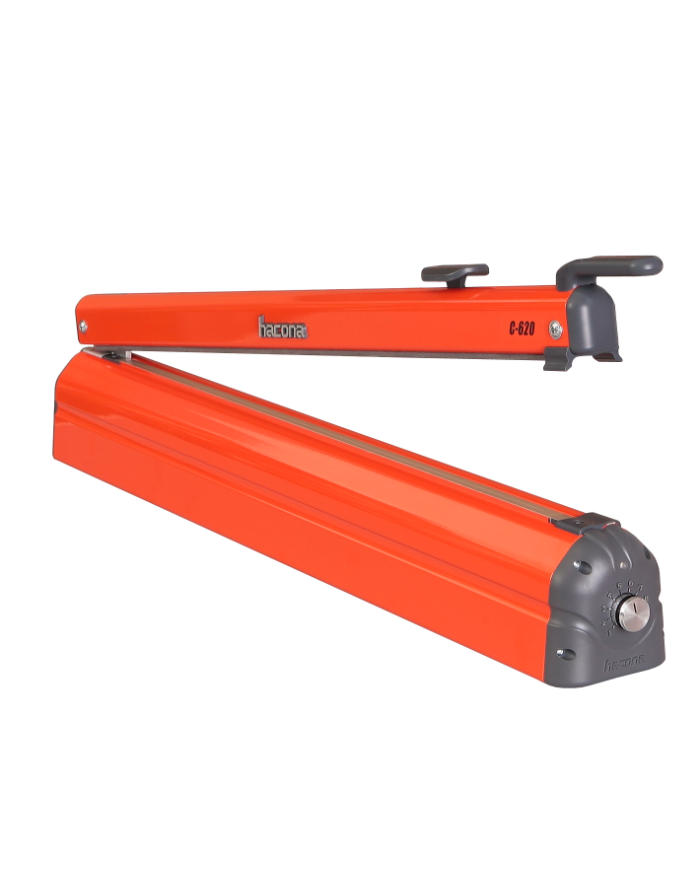

Professional manual impulse sealer with a cutting knife for sealing foil bags and foils. The welder has a robust aluminum body and is also suitable for operations with a high workload. The C-type table welder is very easy to operate and requires minimal work space.
Machine color and surface treatment: orange - 2004-powder painted [RAL]
Working safety:
● IP 23 protection class
● The machine corresponds to all effective EU regulations.
● The machine has got CE certificate
● Hacona produces all the products according to the ISO 9001 Quality - and ISO 14001 Environmental Control System.
It is suitable for a wide range of packaging applications in production, when fulfilling orders or in an office environment. It is enough to connect it to the 230 V power supply and it is ready for operation.

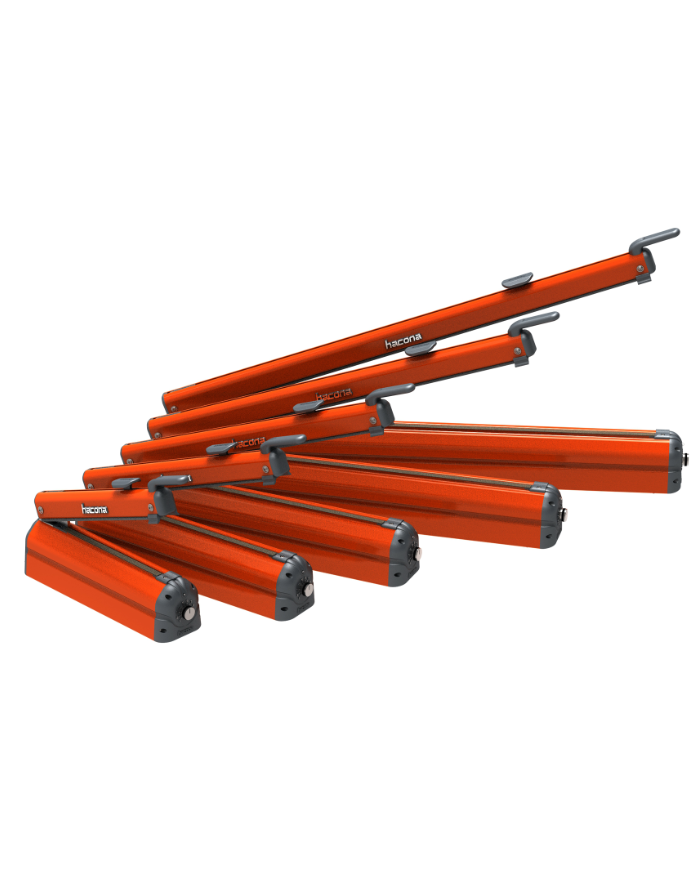

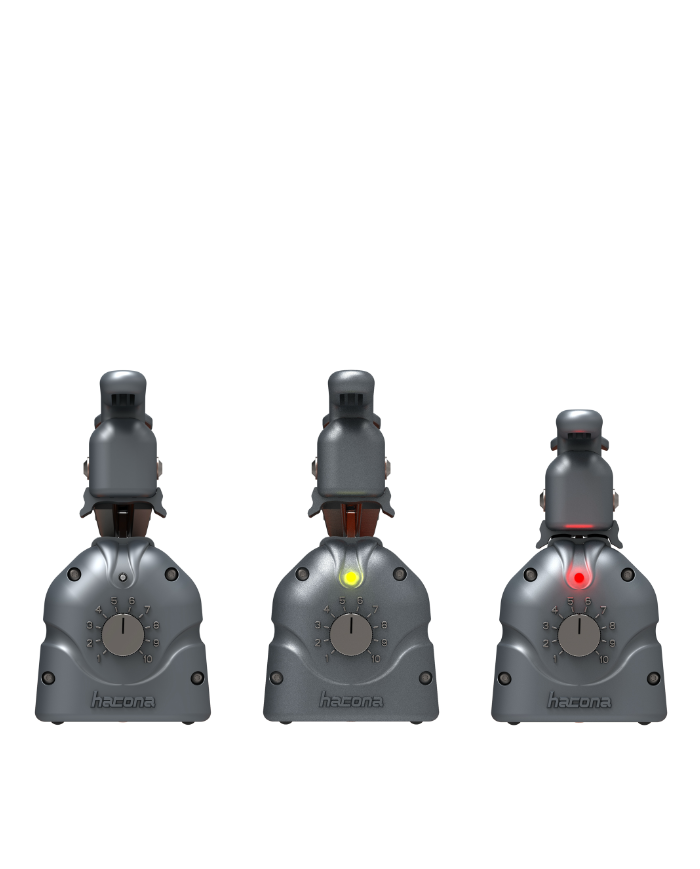

All C-type machines work on the principle of impulse sealing. The melting wire is heated only after the sealing bar is closed. This guarantees maximum safety and energy saving. Type C impulse machines are produced in 5 different lengths. This wide assortment ensures maximum flexibility in choosing the right machine size.
Choose the size of the machine according to the largest size of the bag used in the packaging process. The surface of the machine is powder coated in orange color. It is suitable for general use and can be used in all branches of industry.
| TYPE | WORKING WIDTH | WELD WIDTH | MAX. WIDTH OF SEALABLE FOIL | MAX.POWER | TEMPERATURE | MAX. WELDING TIME | MAX.CAPACITY | VOLTAGE |
| C-220 | 220 mm | 2,5 mm | 200 mm | 174 W | 123°C | 6 sec. | 100 zvarov/ 1 hod. | 230V/50Hz |
| C-320 | 320 mm | 2,5 mm | 300 mm | 227 W | 136°C | 6 sec. | 100 zvarov/ 1 hod. | 230V/50Hz |
| C-420 | 420 mm | 2,5 mm | 400 mm | 241 W | 141°C | 6 sec. | 100 zvarov/ 1 hod. | 230V/50Hz |
| C-620 | 620 mm | 2,5 mm | 600 mm | 368 W | 123°C | 6 sec. | 100 zvarov/ 1 hod. | 230V/50Hz |
| C-820 | 820 mm | 2,5 mm | 800 mm | 478 W | 120°C | 6 sec. | 100 zvarov/ 1 hod. | 230V/50Hz |
