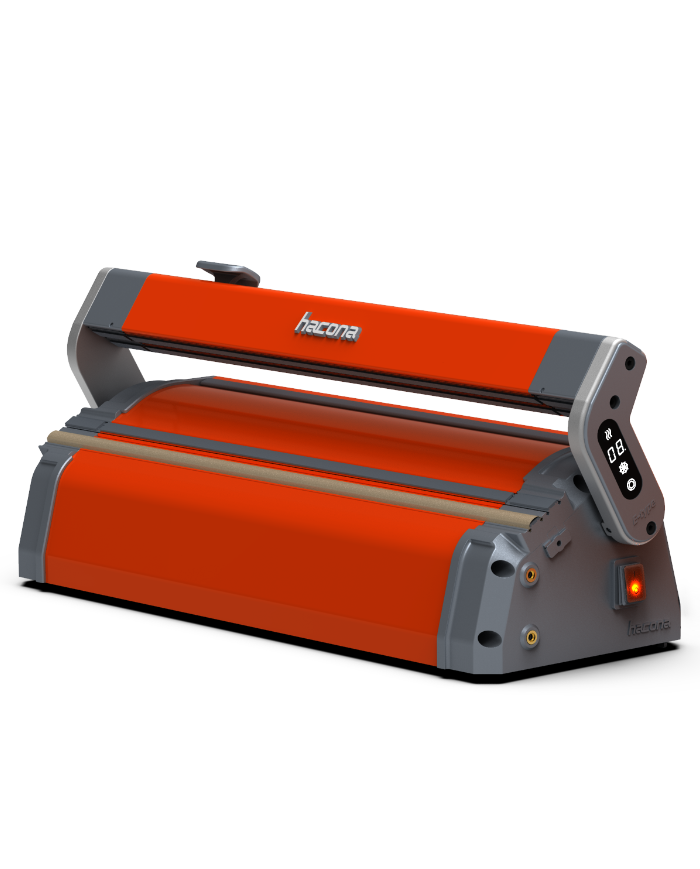

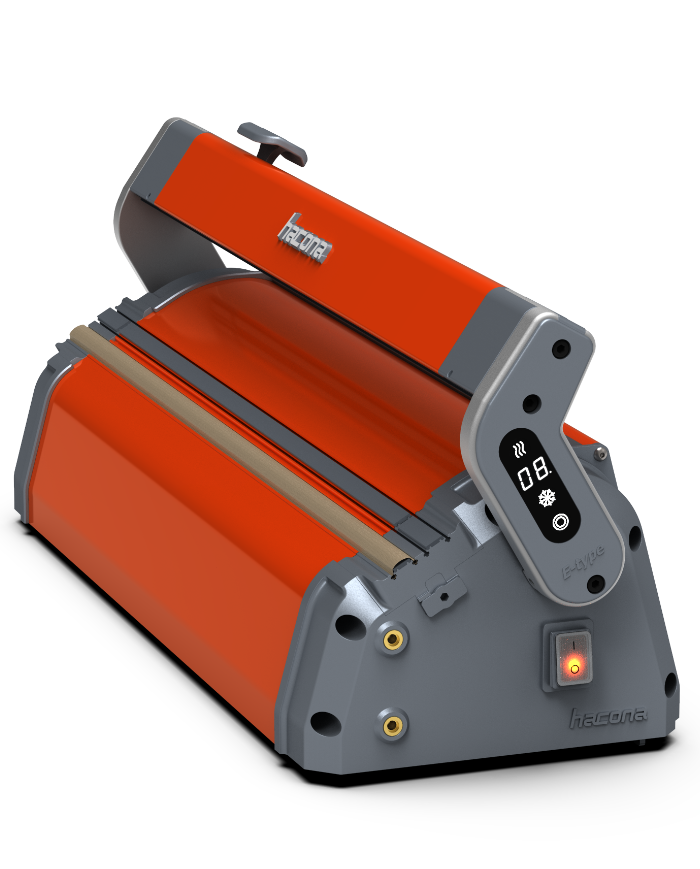

The E – type impulse heat sealing machines with electrical foot pedal is the newest machine type of the hacona product range. All the E – type impulse film sealing machines with electrical foot pedal are working on impulse sealing principle. The sealing wire gets only hot, when sealing bar is closed. The machine is always in stand by mode and consumes only 20 W/h (power consumption). During the sealing process the consumption of the machine is max. 2000 W.
• Maximum safety
• Maximum energy saving
The closing pressure of the sealing bars is evenly distributed through the complete sealing length. Thanks to this detailed planned NEW mechanical solution, the sealing result of the machine is always perfect. The closing and the opening of the sealing bars are supported by an electric motor. The START signal can be given by foot pedal or by hand. Simply touching the sealing bars and applying a small force for closing the bars, the electric signal will be given and the motor is closing the sealing bars. When sealing cycle (sealing and cooling) is finished the sealing bars will open up automaticly.
The machine body and the sealing bar of each E – type impulse heat sealing machine with electrical foot pedal is made out of ultra strong magnesium aluminum profile.
Powder painted - orange color: For general purpose. It can be used in all kinds of industries.
The sealing wire of the E – type is digitally time controlled. By adjusting the sealing time the temperature will automatically increase in parallel. The sealing temperature seperately can not be set! With a special key combination the machine setting can be fixed. The operator will not be able (if the key combination is unknown) to adjust the previously set value. This offeres the highes safety!
All E – type impulse film sealing machines have an integrated electrical gear motor for sealing bar closing and opening. The gear motors special drive - the link between the motor and the sealing bar mechanism - is designed to operate also as a safety system. It can NOT happen, that an operator closes the sealing bars and that any finger is pinched. The sealing wire is covered on the complete length with PTFE tape. The electrical connections are also routed and covered hidden.
TECHNICAL DETAILS ABOUT THE SEALING MACHINE CAN BE FOUND IN THE PRODUCT DETAIL TAB.
